| Main Features | ||||||
| Brand | VMAX | |||||
| Model | c | CPCD15 | CPCD18 | CPCD20 | CPCD25 | |
| Fuel Type | Diesel | Diesel | Diesel | Diesel | ||
| Lifting Capacity | kg | 1500 | 1500 | 2000 | 2500 | |
| Load Center | mm | 500 | 500 | 500 | 500 | |
| Dimensions | ||||||
| Max. Lift height of the elevator with load backrest | mm | 4030 | 4030 | 4030 | 4030 | |
| Max. fork lift height | mm | 4800 | 4800 | 4800 | 4800 | |
| Mast height (standard) | mm | 1985 | 1985 | 1995 | 1995 | |
| Free lifting height(standard) | mm | 125 | 125 | 170 | 170 | |
| Load Backrest Height | mm | 1010 | 1010 | 1010 | 1010 | |
| Distance between seat and head restraint | mm | 1015 | 1015 | 1005 | 1005 | |
| Peak protection height | mm | 2070 | 2070 | 2070 | 2070 | |
| Length without fork | mm | 2230 | 2270 | 2560 | 2560 | |
| Front overhang | mm | 420 | 420 | 477 | 477 | |
| Rear overhang | mm | 424 | 461 | 498 | 498 | |
| Wheelbase | mm | 1400 | 1400 | 1600 | 1600 | |
| Height of the traction pin | mm | 230 | 230 | 290 | 290 | |
| Min. ground clearance | mm | 100 | 100 | 110 | 110 | |
| Overall width | mm | 1070 | 1070 | 1170 | 1170 | |
| Distance between forks | mm | 910/125 | 910/125 | 1024/200 | 1024/200 | |
| Tire tread (front/rear) | mm | 890/920 | 890/920 | 970/970 | 970/970 | |
| Min. turning radius (outside) | mm | 2060 | 2060 | 2170 | 2240 | |
| Min. turning radius (inside) | mm | 130 | 130 | 160 | 160 | |
| Min. Intersection corridor | mm | 1865 | 1856 | 2200 | 2280 | |
| Mast inclination angle | deg | 6°/12° | 6°/12° | 6°/12° | 6°/12° | |
| Fork dimensions | mm | 1070x100x35 | 1070x100x35 | 1070x100x40 | 1070x100x45 | |
| Performance | ||||||
| Max. Driving speeds (loaded/unloaded) | km/h | 13.5/14.5 | 13.5/14.5 | 18/20 | 18/20 | |
| Lifting speeds (loaded) | mm/s | 460/500 | 460/500 | 450/490 | 450/490 | |
| Download speeds (loaded/unloaded) | mm/s | 450/550 | 450/550 | 520/490 | 520/490 | |
| Max. tensile force | KN | 21/15.2 | 21/15.2 | 21/15 | 21/15.2 | |
| 31 Max. degree capability (with/without full load) | % | 18/20 | 20/20 | 27/20 | 23/20 | |
| Weight | ||||||
| Total Weight | kg | 2680 | 2890 | 3400 | 3649 | |
| Weight Distribution full load (front/rear) | kg | 3640/520 | 4040/600 | 4788/532 | 5562/618 | |
| Weight Distribution zero load (front/rear) | kg | 1170/1490 | 1140/1750 | 1328/1922 | 1420/2208 | |
| Wheels and Tires | ||||||
| Wheel quantity | 2 X / 2 | 2 X / 2 | 2 X / 2 | 2 X / 2 | ||
| Tire type | Cool | Cool | Pneumatic wheel | Pneumatic wheel | ||
| Front Tires | 6.50-10-10PR | 6.50-10-10PR | 7.00-12-12PR | 7.00-12-12PR | ||
| Rear Tires | 5.00-8-10PR | 5.00-8-10PR | 6.00-9-10PR | 6.00-9-10PR | ||
| Driving Brake | Hydraulics | Hydraulics | Hydraulics | Hydraulics | ||
| Hand Brake | Mechanical | Mechanical | Mechanical | Mechanical | ||
| Engine and Transmission Specifications | ||||||
| Battery | V/AH | 12 / 80 | 12 / 80 | 12 / 80 | 12 / 80 | |
| Engine 1 | ||||||
| Model | Xinchai NC498BPG | Xinchai NC498BPG | XINCHANG C490BPG | XINCHANG C490BPG | ||
| Nominal output | kw/rpm | 30/2600 | 30/2600 | 36.8/2650 | 36.8/2650 | |
| Rated torque | N.m/rpm | 131/1800 | 131/1800 | 160/1800-1900 | 160/1800-1900 | |
| Number of cylinders | 4-85X100 | 4-85X100 | 4-90X105 | 4-90X105 | ||
| Engine volume | L | 2.27 | 2.27 | 2,67 | 2,67 | |
| Engine 2 | ||||||
| Model | ISUZU C240 | ISUZU C240 | Mitsubishi S4S | Mitsubishi S4S | ||
| Nominal output | kw/rpm | 35.4/2500 | 35.4/2500 | 35.3/2250 | 35.3/2250 | |
| Rated torque | N.m/rpm | 137.7/1800 | 137.7/1800 | 165/1700 | 165/1700 | |
| Number of cylinders | 4-84×102 | 4-84×102 | 4-94×120 | 4-94×120 | ||
| Engine volume | L | 2,369 | 2,369 | 3,331 | 3,331 | |
| Engine 3 | ||||||
| Model | Yanmar 4TNE94 | Yanmar 4TNE94 | ||||
| Nominal output | kw/rpm | 35.5/2400 | 35.5/2400 | |||
| Rated torque | N.m/rpm | 191.5~208.5 | 191.5~208.5 | |||
| Number of cylinders | 4-94×110 | 4-94×110 | ||||
| Engine volume | L | 3,054 | 3,054 | |||
| Fuel Tank Capacity | L | 45 | 45 | 60 | 60 | |
| Transmission Type | 1-1 Power shift transmission | |||||
| Add-ons-Side Shifter (Optional) | ||||||
| All side shift | mm | +100 | +100 | +100 | +100 | |
| Transport width | mm | 970 | 970 | 1040 | 1040 | |
| Total Weight | kg | 51 | 51 | 55 | 55 | |

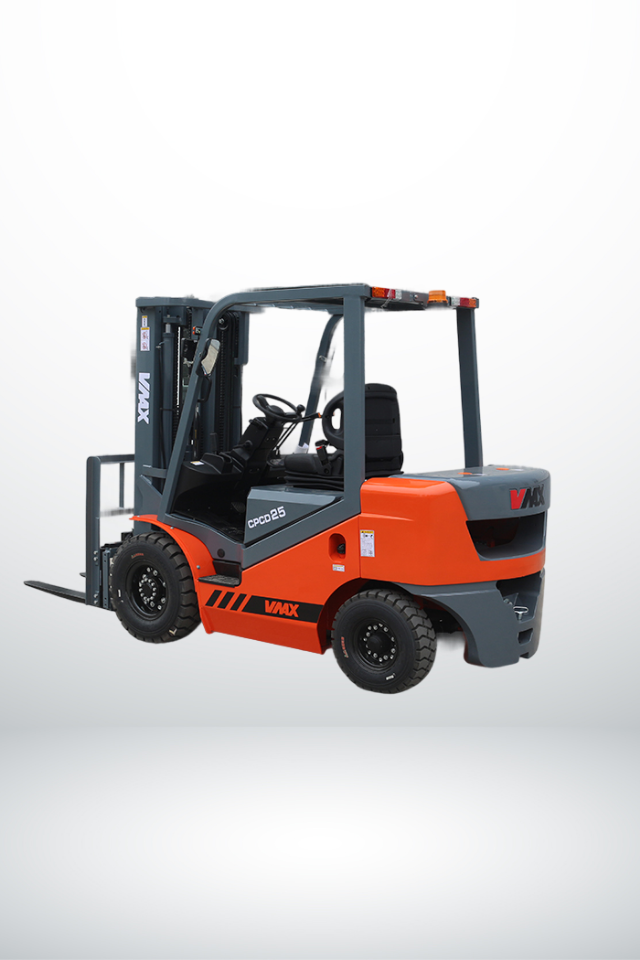

Forklift Truck
2.5 Ton Diesel
The modern design of the H series is designed with the latest technology
Optional engines; Xinchai/Quanchai, Isuzu, Mitsubishi, Yanmar, Kubota, Cummins, Kohler engine options can be preferred in areas requiring different emissions
All body connections are designed using rubber support to reduce vibration in the new design overhead guard. This feature provides a comfortable use for the driver
In the H series design, the elevator is wider and the hose reel is hidden behind the elevator There are no hoses and pulleys obstructing the view and it allows the rider to see the fork tips from a wider angle.
The LED instrument panel is placed on the right side so that the driver can easily see it
